Case Study

Freeman Hospital Bus Shelter, Newcastle

Green-tech Specifier advise on sedum cassettes green roof system at Freeman Hospital Newcastle.

Project Details


Freeman Hospital


Newcastle, England


May 2021

About The Project

Autocross Euroshel is a family business with nearly fifty years’ experience, producing bus shelters for use across the UK. The latest editions feature high grade polished stainless steel, to give a modern contemporary look, in addition to serving as valuable shelter from the elements.

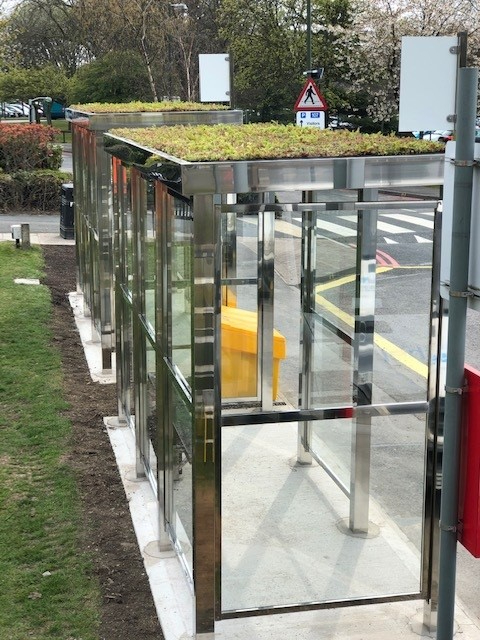

They were approached to produce two bus shelters to be situated outside the Freeman Hospital in Newcastle-upon-Tyne. The brief was to provide aesthetically pleasing shelters that would stand the test of time, and to incorporate a green roof on each. The simplest solution was to use ready-made cassettes containing everything necessary to establish a successful sedum green roof.

The shelters were strengthened to take the weight of the green roof, and the sedum cassettes were situated within a custom-made frame, sloped slightly to allow any excess water to drain off via an outlet pipe concealed within the stanchions. This water then drains away into a land drain.

What we did

We supplied 48 of our sedum cassettes. Each cassette contains four key layers; the base is a drainage layer of expanded clay granules, which slows water filtration without water-logging, as well as holding on to some moisture within its micro-pores. Above this sits a filter layer; a geo-textile that allows the passage of water, but no substrate particles which could block the drainage holes. Then sits the substrate itself, which has been specially blended to meet the needs of the sedum, offering nutrients, moisture, and anchorage to the plants above. Finally, the sedum itself, a mix of up to 16 species. Each cassette offers near 100% coverage, which gives instant impact once the cassettes are laid.

Measuring just under half a metre square, each cassette connects to the adjoining unit, making installation both simple and extremely quick. Once laid, these are relatively maintenance free although we would recommend you remove any weeds or dead foliage in the spring and autumn, and a quick check to ensure that the drainage holes are clear. These really are a “lay it and leave it” solution to adding more green to our urban commuter routes.

“Green roofs highlight the value of integrating sustainable design and green travel in attempts to reduce rates of climate change. We were delighted with Green-tech’s sedum cassettes. They were lightweight, which obviously helps when working at height, and could not have been easier to install. Hopefully, these will be the first of many living roof bus shelters.”

Phil Smith – Operations Manager – Autocros Euroshel

“It was great to be able to work with Euroshel on their first green roof bus shelter. We often extol the virtues of using sedum cassettes as a quick, easy, and cost-effective way of creating smaller green-roofs, and to see them being used out in the public arena like this is a sure-fire indicator that public bodies are really starting to explore more ways to improve our green infrastructure.”

Alasdair Innes – Green-tech Specification Advisor
